Electric Motor Mount AA1530
Moulded in black glass filled nylon, these mounts are
impact resistant, giving protection to the motor and the model. The
holding tube is glued into the fuselage which reinforces this vulnerable
area.

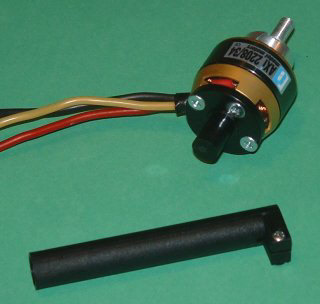

The flange part is fixed by screws to the to the rear
of the motor. It has been designed to fit onto as many different types

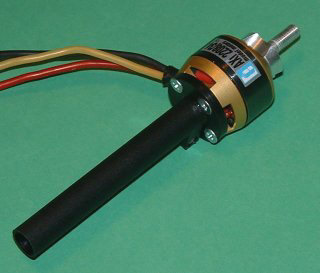

of motor as possible. The holes in the flange shown are particularly
suitable for the AXi 2208 motor shown above.

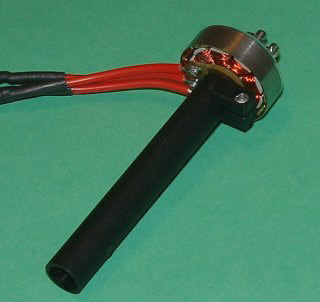

The mount can also be used with Tweety and
C&K motors by omitting the flange and mounting the motor directly
into the 8mm internal diameter holding tube, shown below. In fact any motor with an
8mm diameter mounting shaft can be instantly fitted, for example JPS and
Nippy motors.

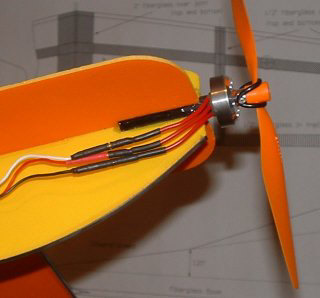

The design allows for the holding tube to be fitted to
sheet foam models by cutting to length and gluing into place, as
shown below.

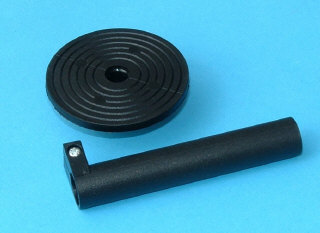

Larger sizes will be available soon. A 44mm flange and
a companion 10mm intenal diameter holding tube is in the final stages of
manufacture and testing.
